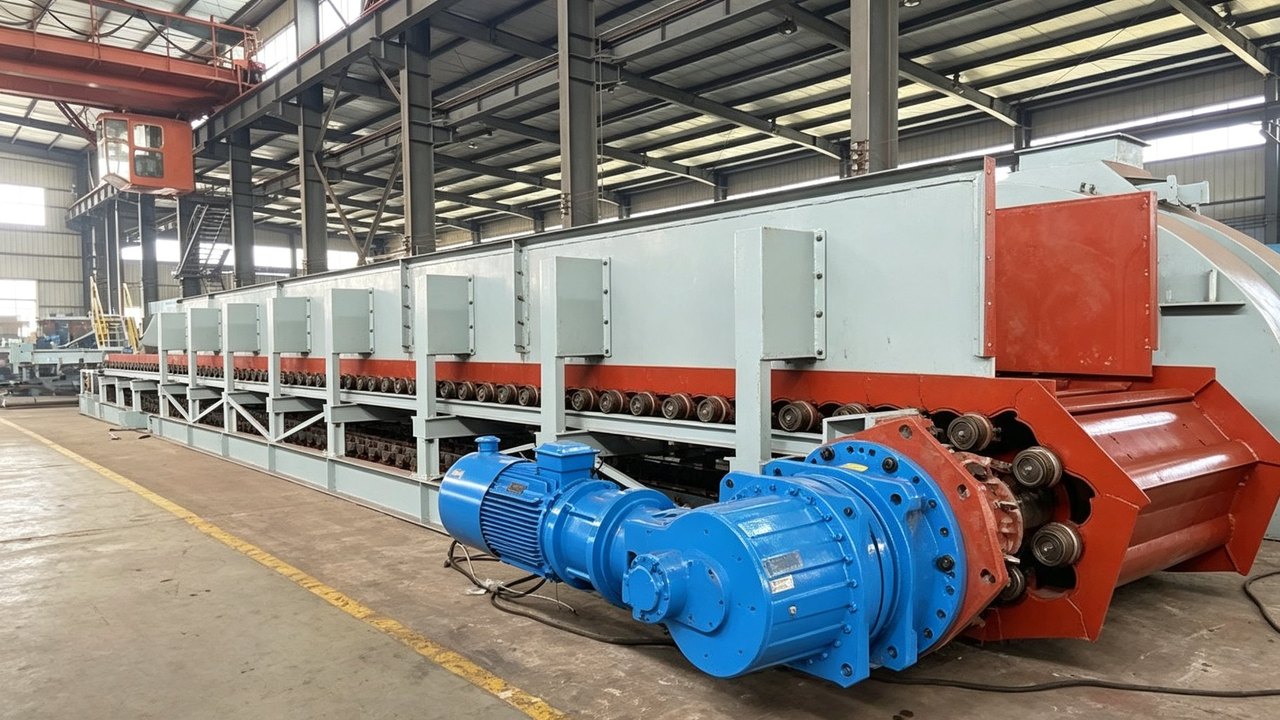

Apron Feeder Drive
Heavy-Duty Motor, Gearbox & Coupling Selection
An apron feeder starts under a full column of material and runs at very low speed with high torque and heavy shock loading. The gearbox is selected on shock load and thermal duty, not on the running power alone.
Send us the capacity, material and chain speed. We select the motor, gearbox, coupling and starter, and quote them as one package with the service factor stated.
What we need from you to select this drive
The more of this you send, the faster and more accurate the selection. If you only have part of it, send what you have — we will tell you what is still missing.
Duty data and site conditions
| Capacity | Throughput in tph |
|---|---|
| Material | Bulk density in t/m³, lump size, temperature, abrasiveness, moisture |
| Feeder geometry | Pan width in mm, length in m, inclination in degrees, hopper opening |
| Chain speed | Chain speed in m/s and the resulting head shaft speed in rpm |
| Drive torque | Required or estimated head shaft torque in Nm |
| Power supply | Voltage, frequency, phases, permitted voltage drop |
| Duty and shock | Running hours, starts per hour, shock load class, whether it starts loaded |
| Site conditions | Ambient temperature, altitude, dust, indoor or outdoor |
How we select it
- 1
Calculate the absorbed power from capacity, chain speed, inclination and material density.
- 2
Apply the shock load service factor and check the thermal rating at the site ambient temperature.
- 3
Match the ratio to the head shaft speed and confirm the output torque and shaft mounting.
- 4
Confirm the loaded-start torque and select the starting method.
- 5
Quote the matched package including the holdback or brake where the inclination requires it.
Selection points that decide the outcome
It starts buried
Apron feeders routinely start with the pans loaded under a full hopper. Rate the motor and gearbox for the loaded-start torque, not for the running torque.
Shock load service factor
Impact from large lumps sets the service factor. Under-rating here shows up as pitting and broken shafts rather than as low power.
Very low output speed
Low speed means high torque and often marginal gearbox lubrication. Confirm the thermal rating and specify forced lubrication where required.
Shaft mounting
Hollow shaft with shrink disc or keyed solid shaft: confirm the head shaft diameter and the mounting arrangement before the gearbox is ordered.
Variable speed requirement
If the feeder speed must follow the process, confirm the turndown and check the motor cooling at the lowest speed.
An indicative package
An example of how a selection comes together. Your figures will differ — this is to show the level of detail we return with a quotation, not a fixed configuration.
Duty
Apron feeder · 1,500 tph limestone · pan width 1,800 mm · inclined · dusty, 45 °C
Package
- Motor: ~90 kW, 4- or 6-pole, IE3, IP55, high-ambient design
- Gearbox: Flender heavy-duty helical or bevel-helical gear unit with the shock load service factor applied
- Coupling: Flender FLUDEX fluid coupling or ARPEX coupling to the head shaft
- Control: VSD where the feed rate is process-controlled, otherwise a soft starter for loaded starting
- Optional: holdback where the inclination creates a reversing load
What we supply for this duty
Heavy-duty gearboxes
- Flender FZG helical and bevel-helical gear units, 3,100 – 1,400,000 Nm
- Flender FLENDER ONE
- WEG WG20 gear units
Motors
- Innomotics SIMOTICS low-voltage motors
- WEG W22 and W51 HD heavy duty
- ABB IEC and NEMA motors
Couplings and starting
- Flender FLUDEX fluid couplings
- Flender ARPEX, RUPEX and ZAPEX couplings
- Backstops and brakes
Variable speed drives
- Siemens SINAMICS G120X and G150
- ABB ACS580 and ACS880
- WEG CFW11 and CFW701
Control and monitoring
- Siemens SIMATIC S7-1200 / S7-1500
- B&R X20 system
- Speed, temperature and chain tension monitoring
Ratings we can supply
Typical ratings available
| Motor power | Commonly 22 – 400 kW for apron feeder duty; higher on request |
|---|---|
| Gearbox torque | Flender FZG: 3,100 – 1,400,000 Nm, 28 sizes, ratio i = 1.25 – 450 |
| Output speed | Low-speed head shafts, typically 5 – 40 rpm |
| Service factor | Applied for shock loading; stated in the quotation |
| Mounting | Hollow shaft with shrink disc, or keyed solid shaft |
